- Model number: NEF-D39DT68N0B
D39DT68N0B CHIMNEY HOOD BLACK GLASS ANGLED CANOPY 90 CM WIDE FEATURES For wall mounted... more

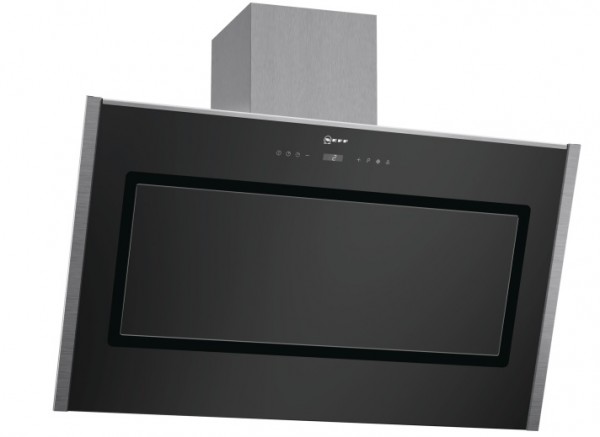

Product information "90cm Black Glass Angled Chimney Hood with S/S Trim"
D39DT68N0B
CHIMNEY HOOD BLACK GLASS ANGLED CANOPY 90 CM WIDE
FEATURES
For wall mounted installation
7 segment LED display
2 x 1W LED lights
softLight with dimmer function
3 metal grease filter cassettes
Saturation indicator for metal and charcoal filter
Filter cover glass, metal grease filter
Interval operation
4 power levels plus intensive (15 minutes)
Automatic intensive revert (6mins)
EfficientDrive BLDC technology
Rim ventilation
DESIGN
90 cm wide Black with glass chimney hood.
Angled glass design
Electronic Touch control
Light Colour: warm white
PERFORMANCE/TECHNICAL INFORMATION
Suitable for ducted extraction and recirculation
For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
Twin channel high performance fan motor
In recirculation operation chimless use possible
Extraction rate according to EN 61591 15 cm:
max. Normal use 480 m/h
Intensive 860 m/h
Maximum extraction rate 630 m/h
Power rating: 272 W
Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
Max. normal use: 67 dB(A) re 1 pW (53 dB(A) re 20 Pa sound pressure)
Intensive: 73 dB(A) re 1 pW (59 dB(A) re 20 Pa sound pressure)
Noise level on maximum normal setting: 53 dB (A); equivalent to 67 dB (A) re 1pW according to EN 60704-2-13
Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 62 dB (A) re 1pW
Noise max. Normal Level: 62 dB*
Light Intensity: 209 lux
Colour Temperature: 4000 K
Electrical cable lenght 1.3 m
Diameter pipe 150 mm ( 120 mm enclosed)
OPTIONAL ACCESSORIES
Recirculating kit Z5140X5, Z5135X4, Z5170X1
CHIMNEY HOOD BLACK GLASS ANGLED CANOPY 90 CM WIDE
FEATURES
For wall mounted installation
7 segment LED display
2 x 1W LED lights
softLight with dimmer function
3 metal grease filter cassettes
Saturation indicator for metal and charcoal filter
Filter cover glass, metal grease filter
Interval operation
4 power levels plus intensive (15 minutes)
Automatic intensive revert (6mins)
EfficientDrive BLDC technology
Rim ventilation
DESIGN
90 cm wide Black with glass chimney hood.
Angled glass design
Electronic Touch control
Light Colour: warm white
PERFORMANCE/TECHNICAL INFORMATION
Suitable for ducted extraction and recirculation
For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
Twin channel high performance fan motor
In recirculation operation chimless use possible
Extraction rate according to EN 61591 15 cm:
max. Normal use 480 m/h
Intensive 860 m/h
Maximum extraction rate 630 m/h
Power rating: 272 W
Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air:
Max. normal use: 67 dB(A) re 1 pW (53 dB(A) re 20 Pa sound pressure)
Intensive: 73 dB(A) re 1 pW (59 dB(A) re 20 Pa sound pressure)
Noise level on maximum normal setting: 53 dB (A); equivalent to 67 dB (A) re 1pW according to EN 60704-2-13
Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 62 dB (A) re 1pW
Noise max. Normal Level: 62 dB*
Light Intensity: 209 lux
Colour Temperature: 4000 K
Electrical cable lenght 1.3 m
Diameter pipe 150 mm ( 120 mm enclosed)
OPTIONAL ACCESSORIES
Recirculating kit Z5140X5, Z5135X4, Z5170X1
Related links to "90cm Black Glass Angled Chimney Hood with S/S Trim"
D39DT68N0B CHIMNEY HOOD BLACK GLASS ANGLED CANOPY 90 CM WIDE FEATURES For wall mounted... more
Specification: 90cm Black Glass Angled Chimney Hood with S/S Trim
| Colour: | Black Glass & S/S Trim |
| Maximum Extraction Rate: | 860m3/Hr |
| Lighting Type: | LED Lighting |
| Construction: | Chimney Hood |
| Maximum Height: | 1472mm |
| Width: | 900mm |
| Depth: | 396mm |
| Energy Rating: | A |
| Design: | Angled Black Glass with S/S Trim |
| Number of Power Levels: | 5 |
| Ducted Extraction Rate Level 1: | 190m3/Hr |
| Ducted Extraction Rate Level 4: | 630m3/Hr |
| Ducting Diameter: | 150mm |
| Ducted Noise Level 1: | 41dB |
| Ducted Noise Level 4: | 67dB |
| Other Features: | Intesive Power Setting |
| Minimum Height: | 1022mm |
